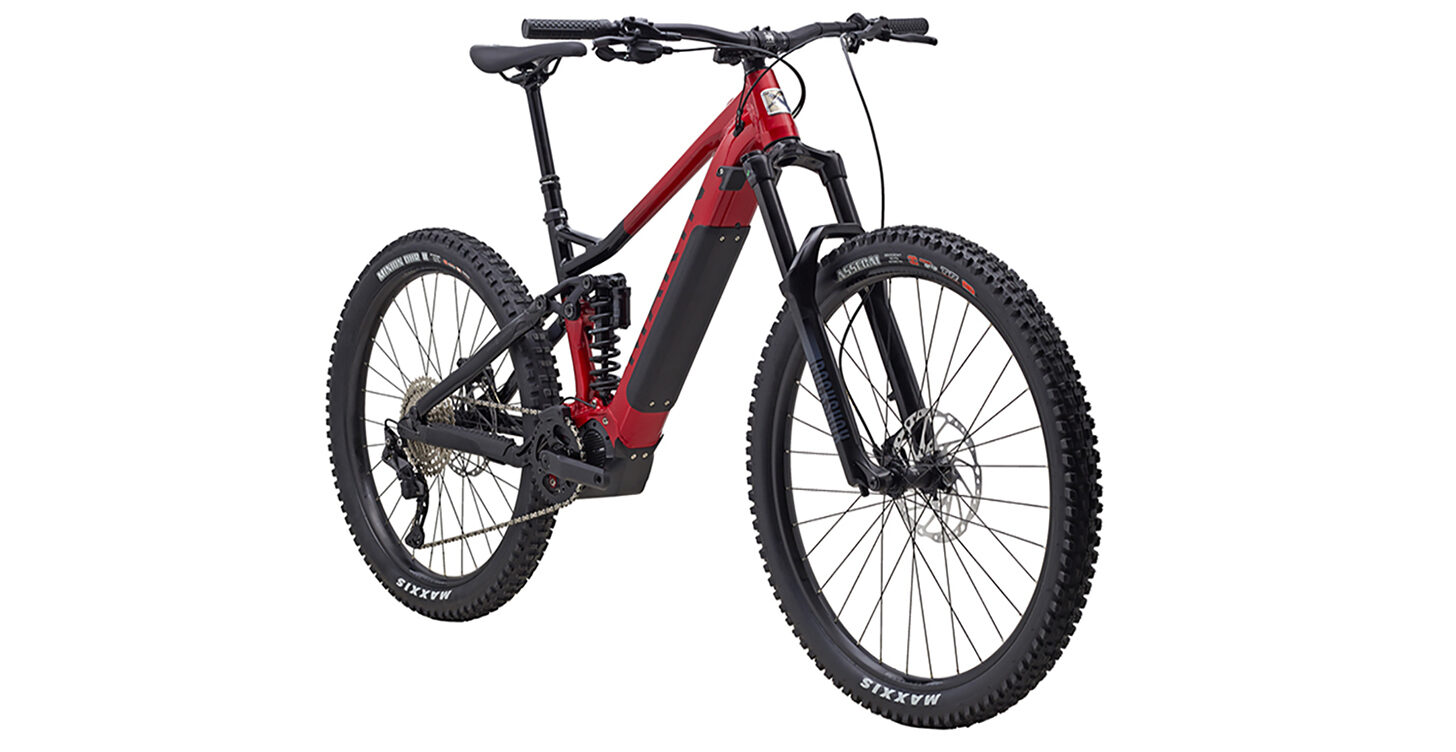

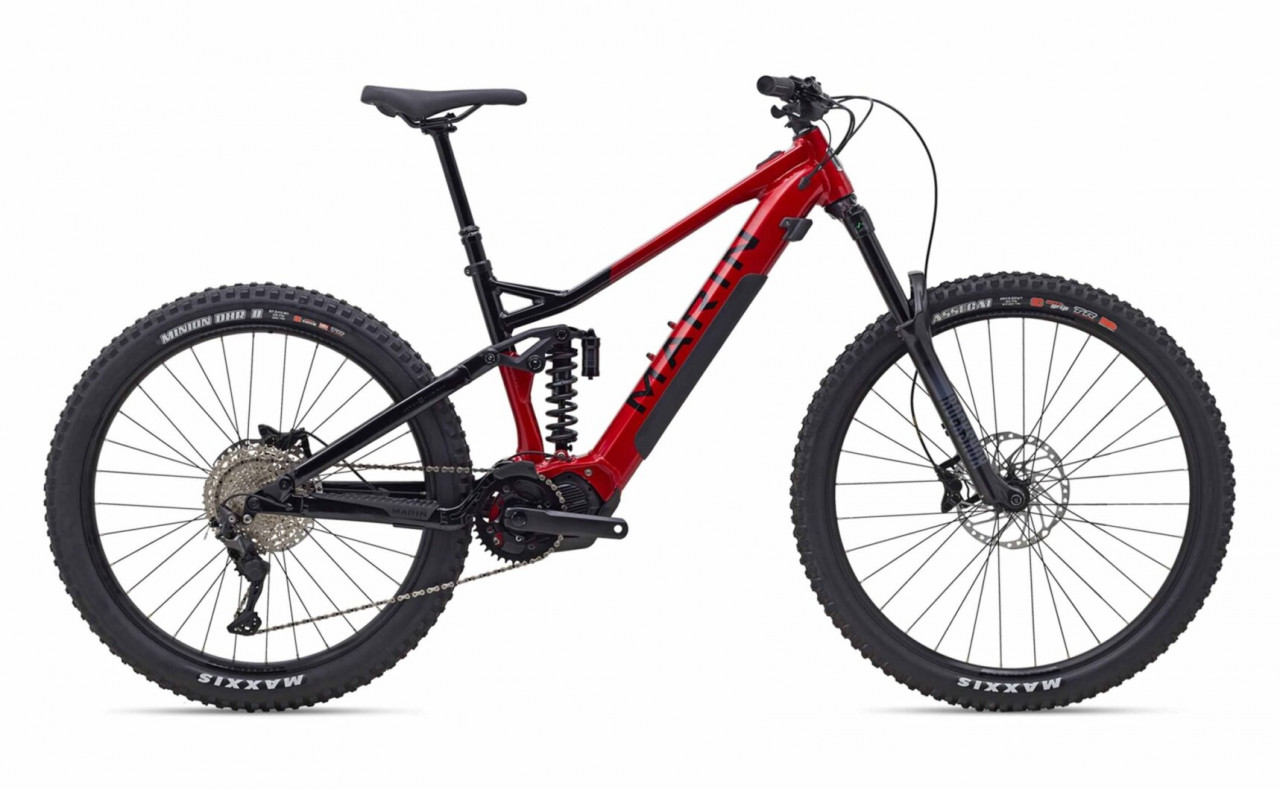

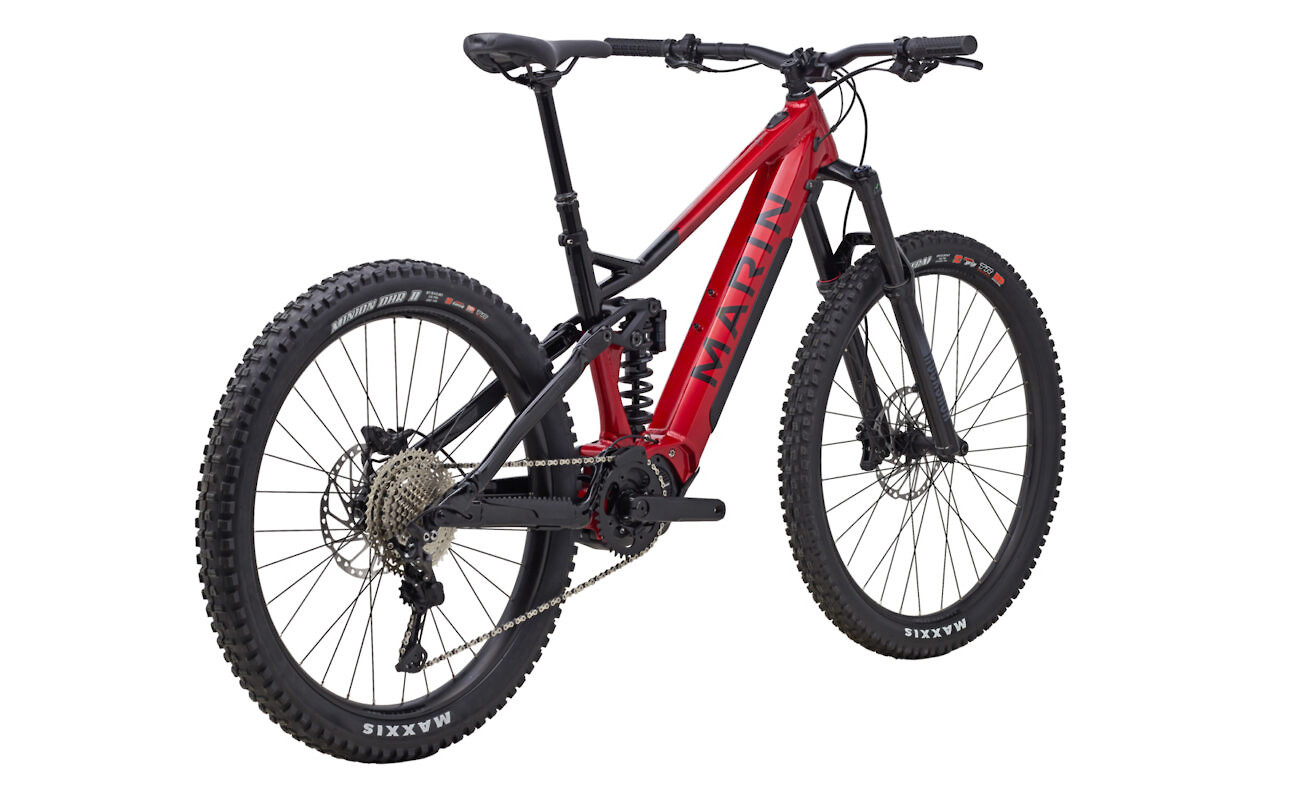

MARIN Alpine Trail E1 červená/čierna/šedá

Hlavní přednosti kola:

Vidlice RockShock 35 Gold RL 29 160mm

Tlumič RockShock Super Deluxe Coil R

Úsporný Motor Shimano Steps 7000 s přirozeným pocitem při šlapání 60Nm

Baterie 504 Wh

Dojezd kola stejný jako s motorem Bosch CX Performance a 625Wh baterií

RÁM: All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
VIDLICA: Rock Shock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset
TLMIČ: Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
RÁFKY: Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
ZADNÝ NÁBOJ: Forged Alloy, E-Bike Specific Design, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
PREDNÝ NÁBOJ: Shimano MT-410B, 110x15mm, centerlock Disc, 32H
ŠPICE: 14g Black Stainless Steel
PLÁŠTE / DUŠE: Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8, 3C Maxx Terra, EXO+, Tubeless Compatible
ZADNÝ MENIČ: Shimano Deore, Direct Attachment, 10-Speed
RADIACE PÁČKY: Shimano Deore, I Spec EV, 10-Speed
KĽUKY S PREVODNÍKMI: Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring
MOTOR: Shimano STEPS E7000
REŤAZ: KMC X-10E, Silver
KAZETA: Shimano Deore 10-speed 11-46T
BRZDY PREDNÉ: Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRZDY ZADNÉ: Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor
BRZDOVÉ PÁKY: Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
RIADÍTKA: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
PREDSTAVEC: Marin 3D Forged Alloy, 35mm
MADLÁ: Marin Single Clamp Locking
HLAVOVÉ ZLOŽENIE: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEDLOVKA: TranzX YSP23J, 30.9mm, Travel S=125mm, M/L=150mm, XL=175mm
SEDLO: Marin E-MTB Saddle
PEDÁLE: Marin MTB Plastic
BATÉRIA: BT-8035, Internal 504Wh
DISPLEJ: SC-E7000 Display
OVLÁDANIE: SW-E7000 Left Hand Switch for Assist Mode Change
DOPLNKY: e13 Plus Chainguide, Aluminum Plate
NABÍJAČKA: Shimano Battery Charger EC-E6002

GEOMETRY

	S	M	L	XL
ASTACK	613	622	631	640
BREACH	445	465	485	505
CHEADTUBE ANGLE	63°	63°	63°	63°
DHEADTUBE LENGTH	100	110	120	130
ESEATTUBE ANGLE	78°	78°	78°	78°
FSEATTUBE LENGTH	390	400	425	430
GTOPTUBE EFFECTIVE	575	597	619	641
HBB HEIGHT	340.5	340.5	340.5	340.5
IBB DROP	28	28	28	28
JCHAINSTAY	435	435	435	435
KWHEELBASE	1215	1239	1264	1288
LSTANDOVER HEIGHT	681.6	681.4	686.8	689.8
MFORK OFFSET	44	44	44	44
SEATPOST DIAMETER	30.9	30.9	30.9	30.9
HANDLEBAR WIDTH	780	780	780	780
STEM LENGTH	35	35	35	35
CRANK LENGTH	165	165	165	165

All lengths in millimeters
