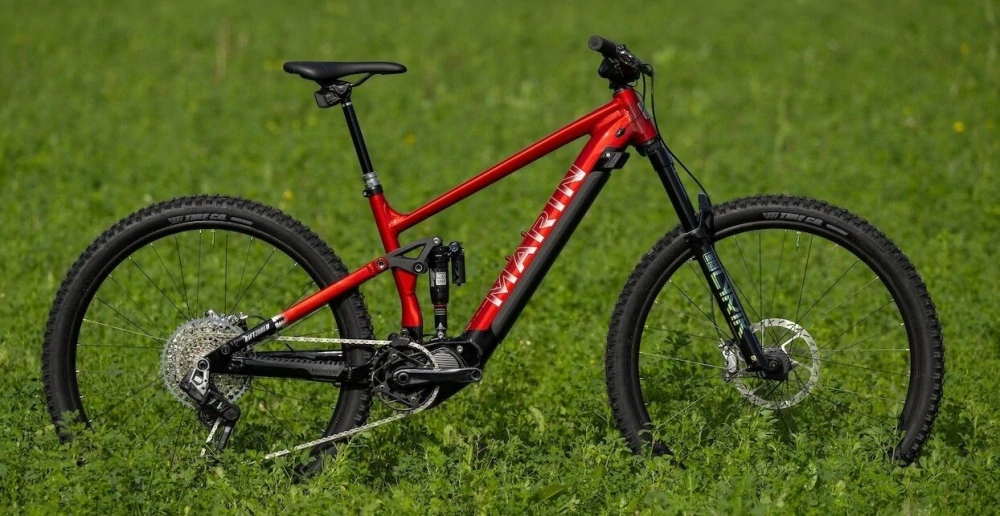

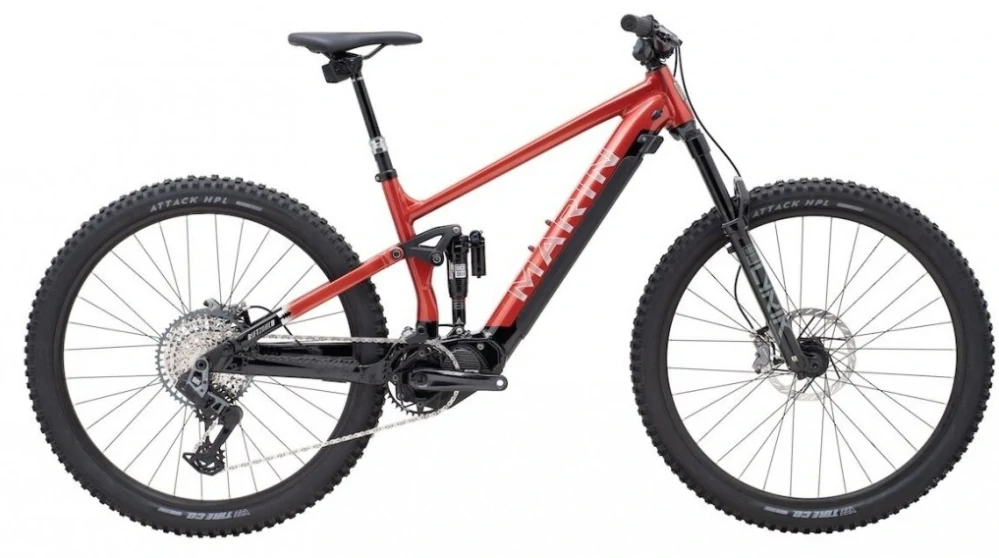

MARIN Rift Zone E XR červená/čierna

Specifications

• FRAME

  Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FORK

  RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset

• SHOCK

  RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune

• RIMS

  Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Formula DC-711, 110x15, 6-Bolt, 32H

• HUB FRONT

  Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing

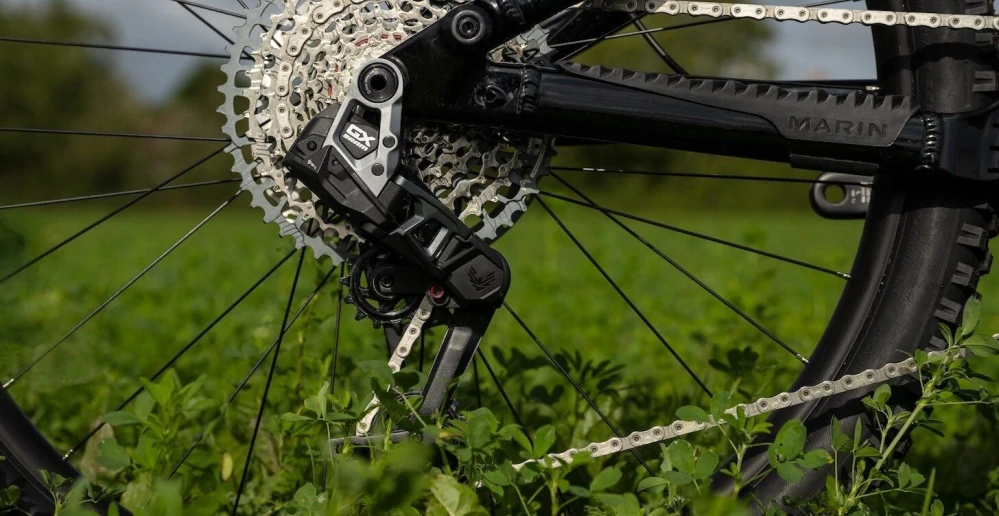

• DERAILLEUR REAR

  SRAM GX AXS

• SHIFT LEVER

  SRAM AXS POD

• CRANKSET

  Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring

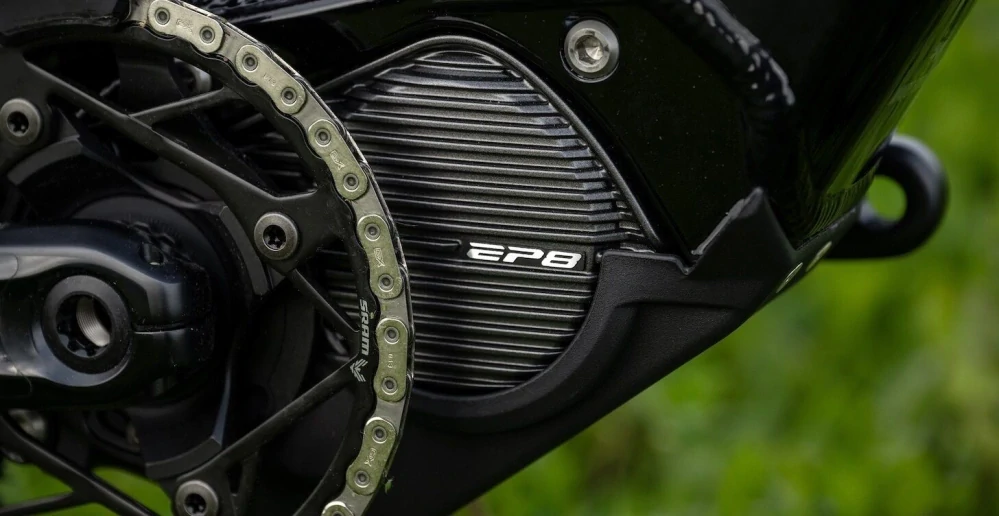

• MOTOR

  Shimano EP801, 250W, 85Nm

• CHAIN



  SRAM GX



• CASSETTE

  SRAM CS-XS-1275, 10-52T

• BRAKES FRONT

  SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor

• BRAKES REAR

  SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor

• BRAKE LEVERS

  SRAM Code Bronze Stealth

• HANDLEBAR

  Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• STEM

  Marin CNC, 35mm Length, 35mm Bar Bore

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm

• SADDLE



  Marin eMTB



• PEDALS



  Marin MTB Plastic



• BATTERY

  BT-EN806 Internal 630Wh

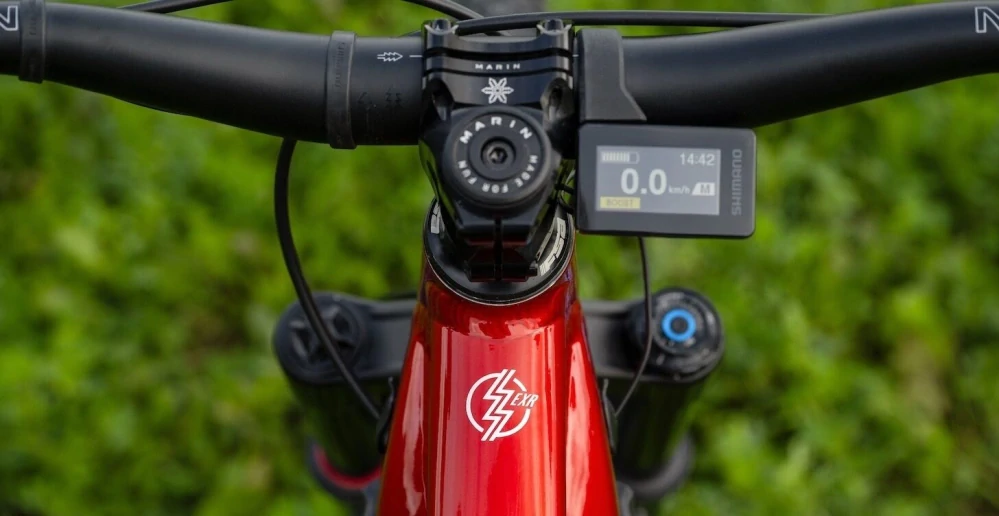

• DISPLAY



  Shimano SC-E600



• SWITCH

  SW-EN600L Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, 2A; CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

• Range, Charging Time

  25-90km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)

Specifications, pricing, and availability are subject to change without notice.

Geometry

	S	M	L	XL
AStack	606.98	614.04	625.1	634.16
BReach	445	465	485	515
CHeadtube Angle	64.5°	64.5°	64.5°	64.5°
DHeadtube Length	100	110	120	130
ESeattube Angle	76.5°	76.5°	76.5°	76.5°
FSeattube Length	390	400	425	435
GToptube Effective	585.13	607.22	629.32	661.41
HBB Height	353.5	353.5	353.5	353.5
IBB Drop	32	32	32	32
JChainstay	440	440	440	440
KWheelbase	1198.29	1222.52	1246.74	1280.97
LStandover Height	693.65	696.01	709.94	719.93
MFork Offset	44	44	44	44
Seatpost Diameter	30.9	30.9	30.9	30.9
Handlebar Width	780	780	780	780
Stem Length	35	35	35	35
Crank Length	160	160	160	160

All lengths in millimeters
