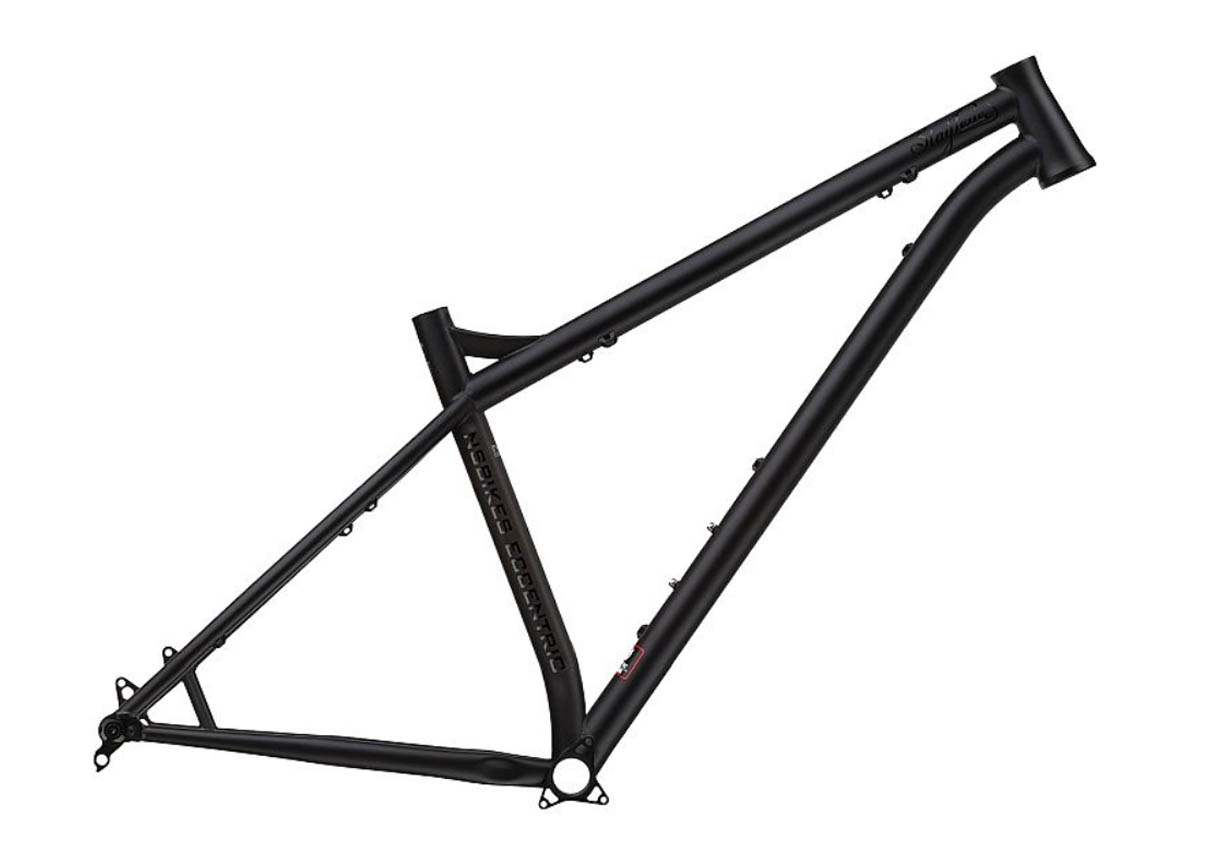

NS BIKES ECCENTRIC CRMO 29 TANGE RÁM BLACK

NS bikes Eccentric Crmo 29

Vychytaný nezaměnitelný kousek - rám pro enduro, all mountain, traily. S radikální moderní geometrií.
Postavený z elitních japonských TANGE CRMO Multi butted custom tvarovaných  trubek, které jsou prověřeny léty používání v nejtvrdších disciplínách.
Výsledkem je extrémně pevný a odolný ale zároveň lehký rám, který snese agresivní ježdění.
Eccentric 29 je designován primárně na 29" kola, ale může používat i 27,5" kola  (doporučené maximum 29"x 2,5 a 27.5” x 3.0” - záleží také na způsobu měření jednotlivých výrobců pneu)
Doporučený zdvih vidlice je do 130-150 mm.
Rám je dodáván s pevnou zadní osou  (O.L.D 148 x 12mm)


Velikosti: (S16”, M17.5” & L19.5”)

Obecné doporučení výrobce ohledně volby velikosti:: we recommend the S size for riders up to 172cm, M size for 170 – 182cm and the L size for riders over 180cm.
Tzn.
Velikost S pro jezdce do výšky 172 cm
Velikost M cca 170-182 cm
Velikost L od 180 cm

Radical, modern geometry with a very long reach and a super slack head angle make this bike ideal for anyone who likes to go full gas! This beautiful steel 29'er is built with custom drawn Tange tubes with built-in gussets that we developed ourselves. At around 2.5 kg the frame is light by any standards, but don’t worry, it’s strong enough to hold up to a lot of abuse. All the know-how that we have managed to acquire over the years in building steel dirt-jump hardtails has been funnelled into this frame and we are sure it's the very best money can buy. Fitted with a good 140mm fork and dropper post, the Eccentric will fly across trails and put the kind of smile on your face that only a hardtail deliver.

MAIN FEATURES

- super high-end cromoly frame for 29” and 27.5+ wheels

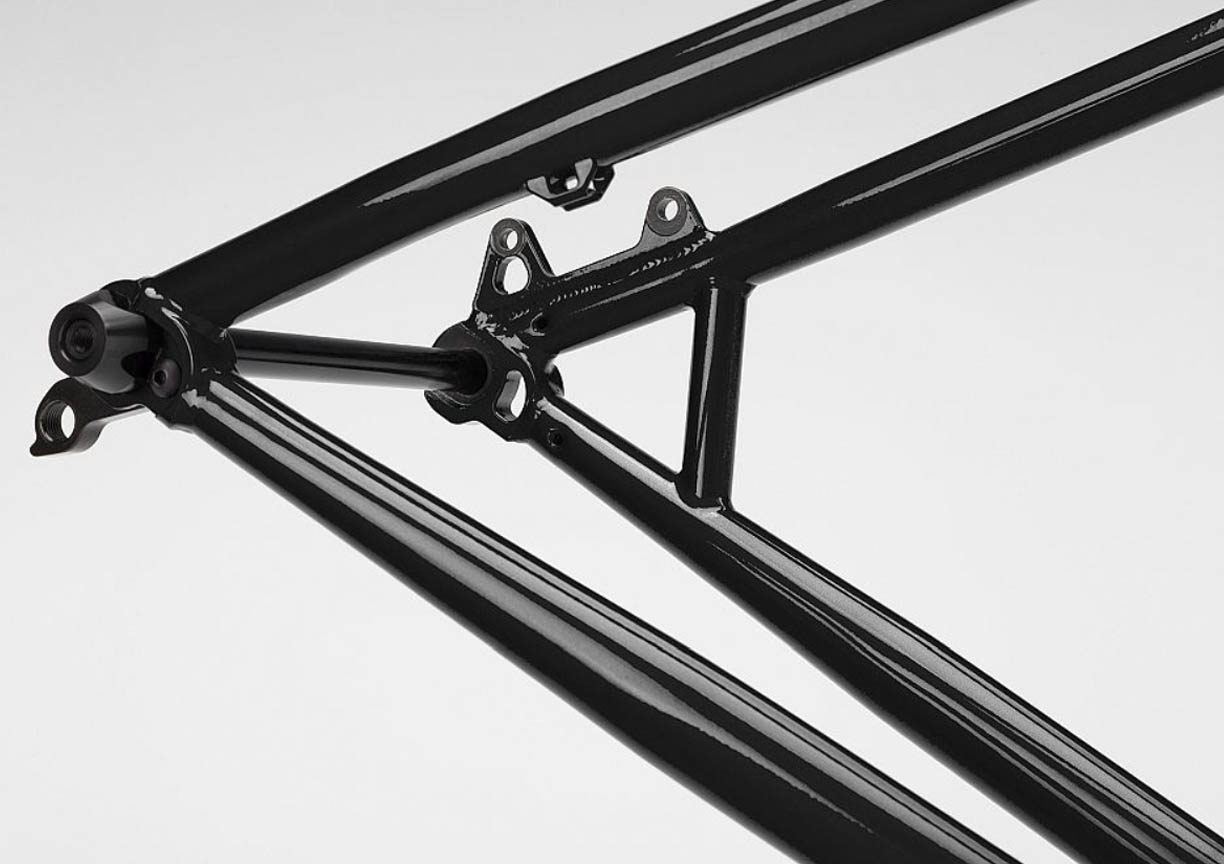

- Boost 148 dropouts

- designed for Trail & All Mountain riding

- high end multi-butted Tange Eccentric tubing

- modern aggressive geometry with long reach and slack angles

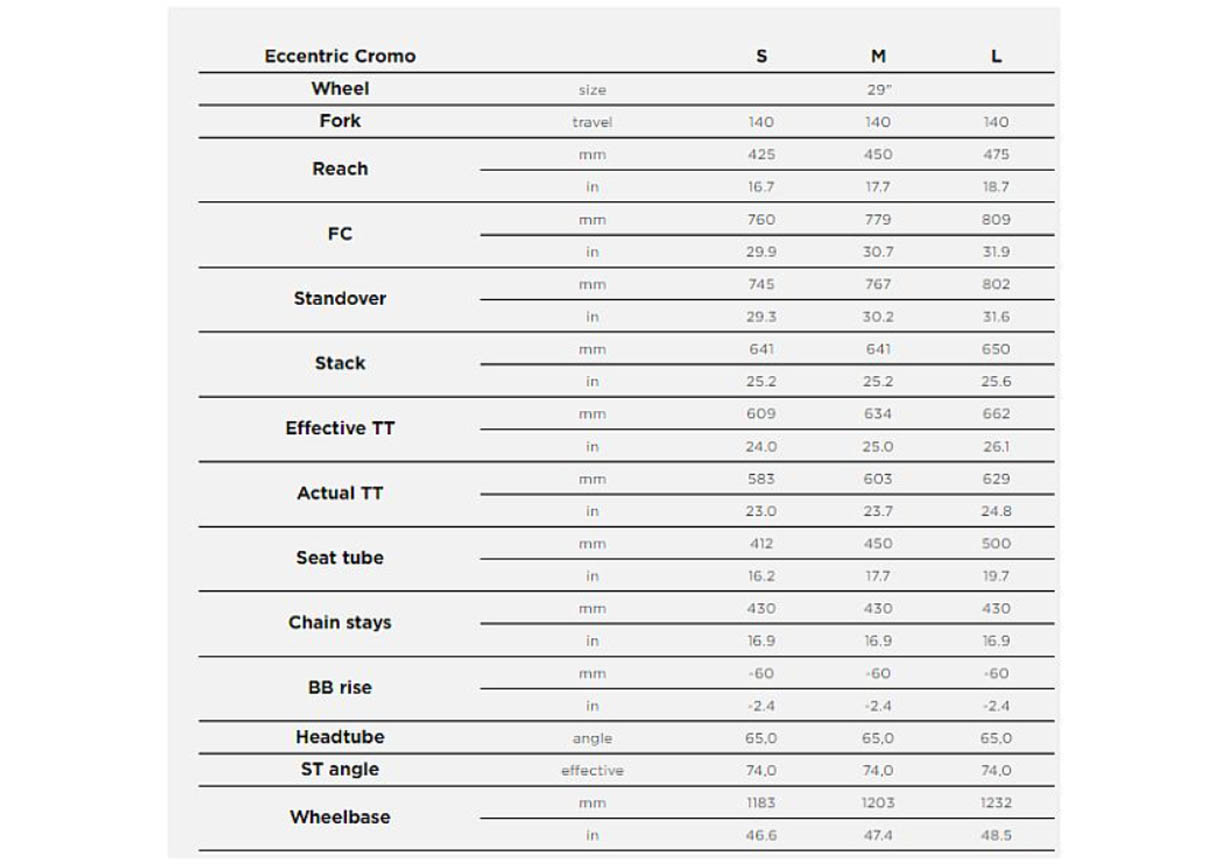

TECHNICAL SPECIFICATION
Material: custom butted 4130 cromoly, Tange Eccentric tubes

Sizes: 3 frame sizes (16”, 17.5” & 19.5”)

Recommended fork travel: 130-150mm

Head tube: integrated tapered IS42/IS52

Fits forks: standard 1-1/8” or tapered 1.5 1-1/8” steerer tubes

Head tube length: S size: 105mm, M size: 115mm, L: 125mm

BB: threaded 73mm with ISCG-05 mounts

Biggest chainring: BOOST only up to 32t

Front derailleur: not compatible

Seat post/clamp: 30.9 / 34.9

Max seat post insertion: 270mm (S), 300mm (M & L)

Cable routing: stealth cable route with rubber grommets in seat tube for dropper post

Maximum tire size recommended: 29” x 2.5”, 650B x 3.0”

Disc brake: IS-2000 disc brake mount, max rotor size: up to 185mm

Hub spacing: 148x12mm, NS axle included

Weight: ~2.5 kg (M size, w/o axle)
